20.3/35 kV HALOGEN FREE, FLAME RETARDANT, XLPE INSULATED SINGLE -CORE CABLES WITH COPPER CONDUCTOR
N2XSH 20.3/35 kV TSEK

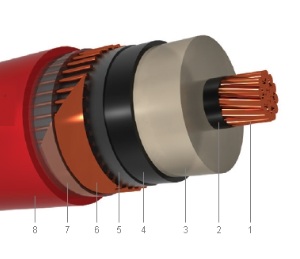

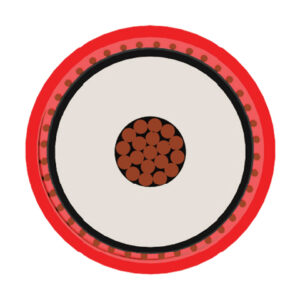

Structure
1.Stranded copper conductor
2.Inner semi condutive layer
3.XPLE insulation
4.Outer semi conductive layer
5.Semi conductive tape
6.Copper wire screen
7.Polyester tape
8.HFFR outer sheath
Technıcal Data
Maximum operating temp.:90°C
Max.short circuit temp.:250°C (+≥ 5 sn)
Installation temp.min:-20 °C
Standarts: TS IEC 60502-2 VDE 0276
Applıcatıons
They are used in cable ducts, outdoor and indoor installations, under ground where the short circuit levels are high and industrial areas fed by electrical also these cables use where there is risk of mechanical damage.
