20 3 35 kV XLPE INSULATED SINGLE CORE ALUMINIUM WIRE ARMOURED CABLES WITH COPPER CONDUCTOR
N2XSYR(AL)Y 20.3/35 kV TSEK

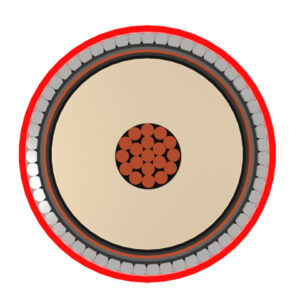

Structure
1.Stranded copper conductor
2.Inner semi condutive layer
3.XPLE insulation
4.Outer semi conductive layer
5.Semi conductive tape
6.Copper wire screen
7.Polyester tape
8.Seperation sheath
9.Aluminum steel wire armour
10.Polyester tape
11.PVC outer sheath
Technıcal Data
Maximum operating temp.:90°C
Max.short circuit temp.:250°C (+≥ 5 sn)
Installation temp.min:-5 °C
Standarts: TS IEC 60502-2 VDE 0276
Applıcatıons
They are used in cable ducts, outdoor and indoor installations, under ground where the short circuit levels are high and industrial areas fed by electrical also these cables use where there is risk of mechanical damage.
