0.6/1 kV XLPE INSULATED MULTI CORE CABLES WITH ALUMINIUM CONDUCTOR
YAXV 0.6/1 kV TS IEC 60502
NA2XY 0.6/1 kV VDE 0276

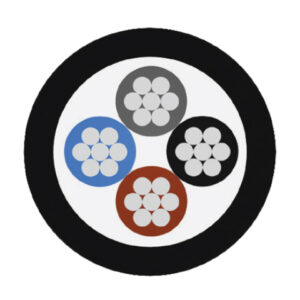

Structure
1.Solid or stranded aluminium conductor
2.XLPE insulation
3.PVC filler
4.PVC outer sheath
Technical Data
Maximum operating temp.:90°C
Max.short circuit temp.:160°C (Maximum 5 sec.)
Standarts: TS IEC 60502 VDE 0276
Installation temp.min:-5 °C
Applications
At power distribution stations, house hold premises, at industrial plants in cable ducts and pipes.Where there is no risk of mechanical damage.
